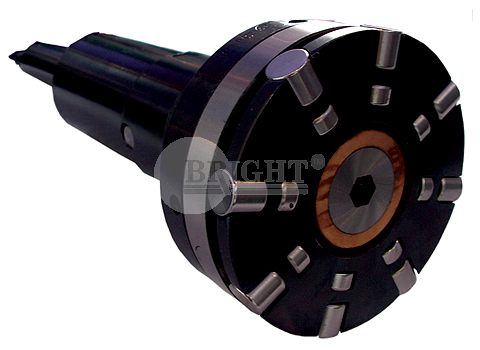

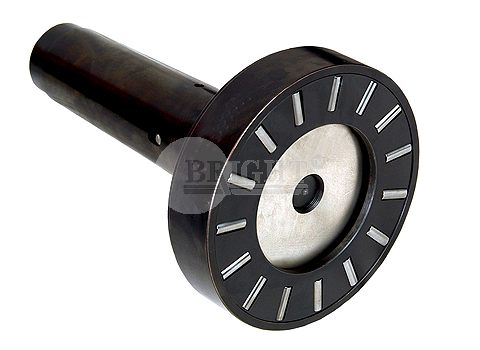

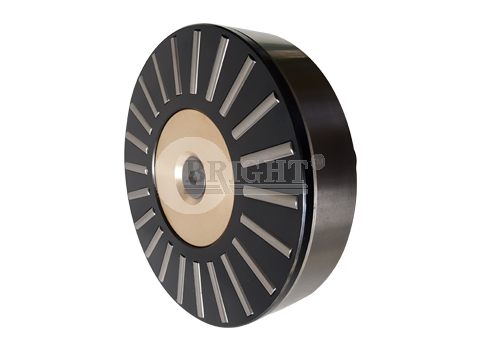

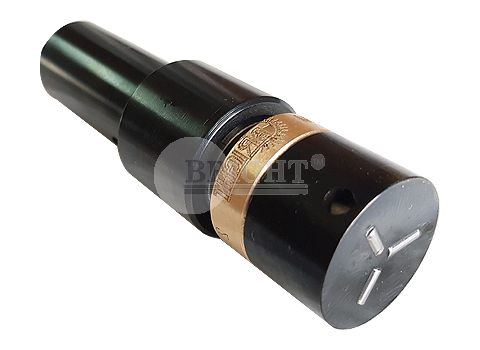

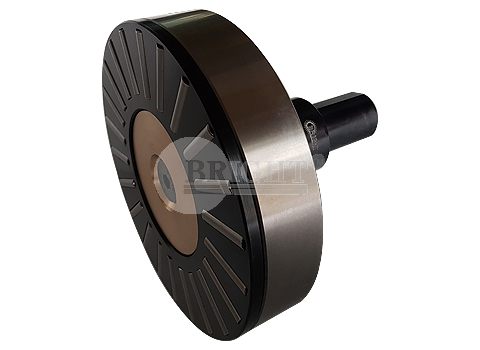

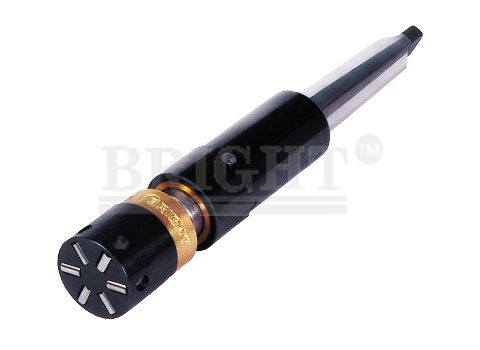

Flat Circular Face Burnishing Tools
Flat circular face burnishing tools are used to achieve low surface finish on the flat circular faces of machined components. Normally face sealing applications require lower surface finish on the mating faces. Multi roller type face burnishing tools are used for this application. Since the application requirements vary there are no standard tools available. Tools designs are customized as per the part sketch.
Processing Sketch
Technical Specification
| Title | Description |
|---|---|
| Diameter Range | A minimum relief of 3mm at the center of the job is required for designing a face burnishing tool. There is no limitation on the maximum diameter on the face but the maximum diameter is limited upto 50mm for practical purposes. For higher diameters Multi surface Carbide Single Roller Tool can be used. |
| Diameter Adjustment | No adjustments can be made on this design of tools. The tools are made as per the part sketch. |
| Shank | Tool holding Shanks are available in Morse Taper (MT), straight/round, BT or any other as per the request. |
| Job Material | Any Ferrous or Non-Ferrous item can be burnished. Normally ferrous materials with a maximum natural hardness of 35HRc are recommended for burnishing operation. Heat Treated jobs are not recommended. |
| Machine Used | External diameter Roller Burnishing Tools can be fitted for use in any spindle driven machines. Normally these tools can be used in CNC Turning centers / Vertical Machining center / Conventional Lathes / Pillar drilling machines or any other Special purpose machinery. |
